Induced Currents and Forces – 5K10.00

Induction Coil with Magnet Galvanometer – 5K10.20

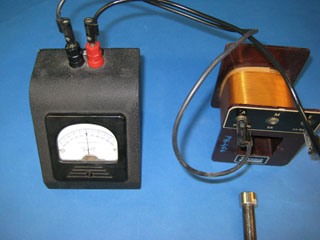

InducCoil1_5K1020

  • A coil of wire is connected to a galvanometer.
  • A bar magnet is moved in and out of the coil.
  • The galvanometer deflects; depending on the direction of the motion of the bar magnet or which pole enters first.

Location: Jacobs B122 – Shelf 274
