Capacitors – 5C10.00

Sample Capacitors – 5C10.10

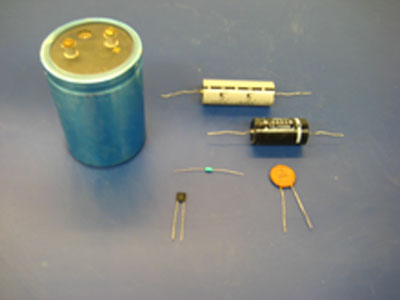

Sample Capacitors 5C10

  • Show capacitors and capacitor parts and explain.
  • A capacitor is a device consisting essentially of two conducting surfaces separated by an insulating material or dielectric such as air, paper, mica, glass, plastic film, or oil. It stores electrical energy, blocks the flow of direct current, and permits the flow of alternating current to a degree dependent upon the capacitance and the frequency.

Location: Jacobs B122 – Shelf 265
